Stainless Steel Submersible Borehole Motor
For 4" & 6" Well Casing Diameter
High Quality Thrust Bearings
The trust bearing is of the kingsburry type lubricated by the internal fluid. During operation a wedge of water is drawn between the stainless steel pivot shoes and carbon disc to carry the thrust load generated by the pump. Located inside and at the bottom of the motor, the bearing is sealed away from sand and other contaminants.
Sand Resistant Slinger and Lip Seals
A stainless steel slinger and slinger guide are also closely fit to help prevent sand entry. Double rubber seals are installed to prevent well water and contaminants from entering the motor.
High Reliable Carbon Bearing
Two water lubricated carbon bearings are used as guide bearings. These have extremely large surface area and result in extra alignment support-less whipping and acts as a steady bushing.
Water-Filled Design
The motor lubrication is provided by the internal cooling water consistings of a water, anti-freeze and anti-rust mixture good to 30°C (-22°F). This mixture is installed at the factory. Two water plugs are located near of the top of the motor and are used by the installer to check the water level or to the top off needed before installation.
Complete Corrosion and Water-Tight Protection
All main motor components are made of stainless steel: including the can housing (water tight type motors have baked epoxy coated steel housing), Shaft and bolts. All other motor parts are coated with the baked epoxy coating.

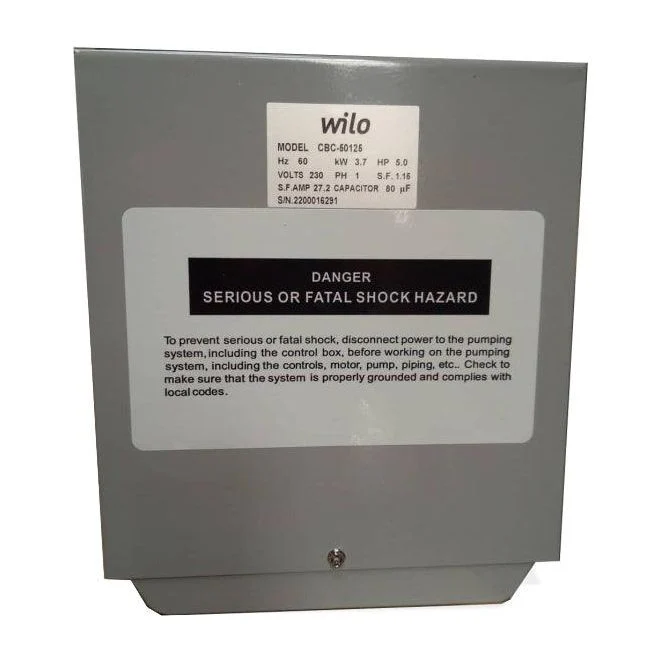

An electrical control panel
is a metallic box that allows the
person to control all electric equipment,
appliances, and circuits mechanically by
using electric energy.
What is an electrical control panel
? An electrical control panel is an enclosure,
typically a metal box or plastic moulding which
contains important electrical components
that control and monitor a number
of mechanical processes.
With Control Panel in Microsoft Windows,
users can configure system-level features and
perform related tasks. Examples of system-level
feature configuration include hardware and
software setup and configuration, security,
system maintenance, and user account management.
An electric control panel is a
collection of electrical components and
devices that control, monitor,
and regulate the distribution of
electrical power in a facility.
Some of its technical features include:
Circuit protection devices such as fuses
and circuit breakers to prevent overloading and short-circuits.
