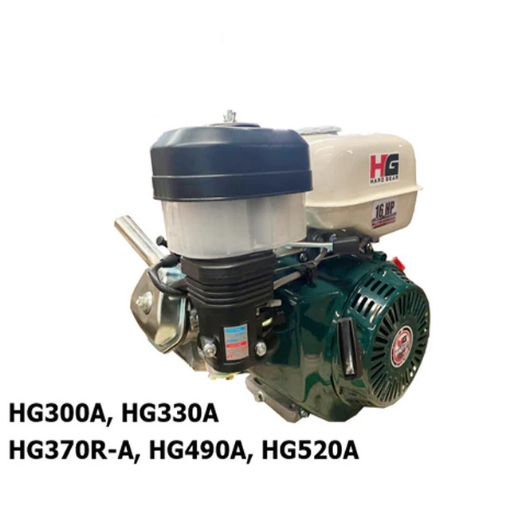

Hard Gear Engine Series - OHV 4 Stroke Gasoline Engine
Everything you need for the good time with your outdoor activity.
Hard gear Engines provides both high power output and low fuel consumption. It brings sophisticated technology, performance and durability for power equipment.
Construction: Concrete Mixers, Concrete Vibrators, Concrete and Asphalt Cutter, Plate Compactors, Screeders, Power Trowels, Portalift, VIbratory Rollers and more.
Agriculture: Blowers, Pumps, Sprayers, Tractors, Shredders, Threshers, Harvesters and more.
Transportation / Recreation: Fishing Boat, Motor Bancas, Go Carts, Trisikad-Kuliglig.
| MODEL |
HG370R-A |
HG370R |
HG490A |
HG490 |
HG520A |
HG520 |
| Type |
Air cooled, 4-cycle OHV 25° Inclined, Single Cylinder, Gasoline Engine |
| Displacement Volume (cc) |
279 |
389 |
420 |
| Bore x Stroke (mm) |
77x58 |
88x64 |
90x66 |
| Compression Ratio |
8.2:1 |
8.6:1 |
| Max. Power (HP/RPM) |
9.0/1800 |
13.0/3600 |
16.0/3600 |
| Max. Torque |
34/1250 |
23/2500 |
26/2500 |
| Air Cleaner/Lubrication |
Oil bath type / Splash System |
| Starter System |
Recoil Start with Automatic Compression Release |
| Oil Capacity (L) |
1.1 |
| Fuel Capacity (L) |
6.5 |
| Size(WxLxH) mm |
540x460x510 |
450x490x500 |
420x510x490 |
| Net Weight (kg) |
25 |
31/34 |
33/36 |
