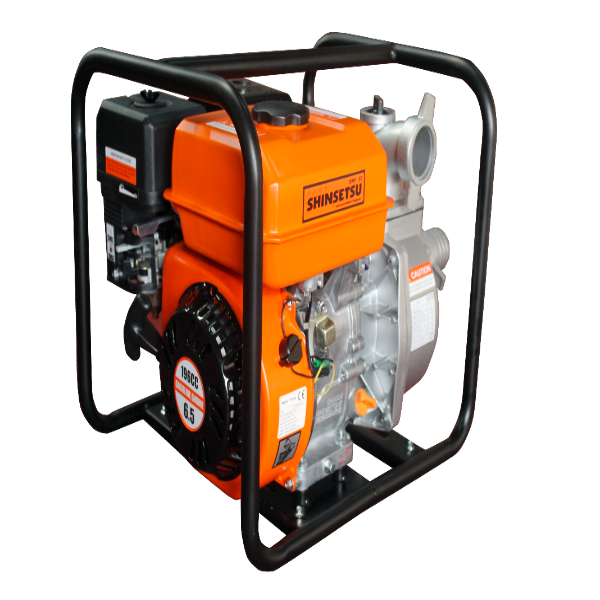

Shinsetsu Clean Water Pump Gasoline, SWP-100

Product Description: Shinsetsu Clean Water Pump Gasoline, SWP-100

The Shinsetsu Clean Water Pump Gasoline, SWP-100, is engineered to deliver powerful, reliable water pumping capabilities for demanding industrial, agricultural, and construction applications. With its high-performance gasoline engine and robust design, this pump guarantees efficiency, durability, and optimal operation even under rigorous working conditions.

Key Features and Specifications

High-Performance Engine:

• Displacement: 270 cc
• Rated Power: 5.0 kW (6.5 hp) @ 3600 rpm
• Maximum Power: 5.5 kW (7.5 hp) @ 3600 rpm

Superior Hydraulic Performance:

• Total Head Lift: 30 meters
• Suction Head: 8 meters
• Maximum Discharge Capacity: 75 m³/h

Efficiency & Fuel Management:

• Fuel Tank Capacity: 6.3 L
• Fuel Consumption Ratio: 3.74 (g/kWh)

Heavy-Duty Design:

• Diameter of Suction and Pipe: 100 mm (4 in)
• Net Weight: 43 kg

Included Standard Accessories:

• 1 pc Strainer
• 2 pcs Pipe Connection Gasket
• 1 pc Tool Set
• 2 pcs Joint Pipe
• 2 pcs Joint Grip
• 3 pcs Hoop Assembly

Alternative Variant:

• Displacement: 270 cc
• Rated Power: 4.8 kW (6.7 hp) @ 3600 rpm
• Maximum Power: 5.5 kW (7.8 hp) @ 3600 rpm
• Total Head Lift: 25 meters
• Suction Head: 7 meters
• Maximum Discharge Capacity: 55 m³/h
• Fuel Tank Capacity: 5 L
• Fuel Consumption Ratio: ≤374 (g/kWh)
• Diameter of Suction and Pipe: 80 mm (3 in)
• Net Weight: 27 kg

Alternative Model Accessories:

• 1 pc Filter Cover
• 1 pc Suction Water Tube
• 1 pc Spark Plug Wrench
• 2 pcs Interface Hose
• 2 pcs Joint Hose
• 2 pcs Ring Hose Joint Seal
• 3 pcs Hoop Assembly

Professional-Grade Reliability The SWP-100 is your go-to solution for clean water transfer, offering exceptional suction and discharge performance, easy maintenance, and a comprehensive accessory kit for fast setup and operational flexibility. Trust Shinsetsu for leading-edge performance and dependability in every drop.
