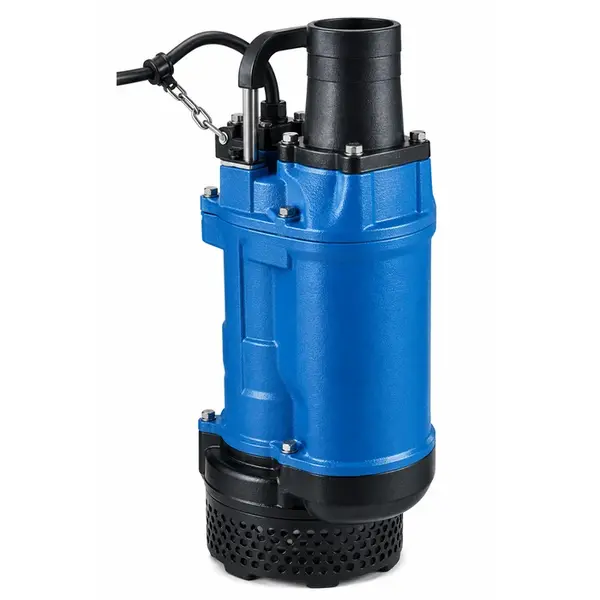

Shinsetsu Submersible Pump Drainage, SBZD-223

Specifications Motor Output 2 hp / 1.50 kW 3 hp / 2.2 kW 5 hp / 3.7 kW 7.5 hp / 5.5 kW 10 hp / 7.5 kW 15 hp / 11 kW 20 hp /15 kW Voltage 220 V 220 V 220 V 220 V 220 V 220 V 440 V Frequency 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz Phase 3 Ph 3 Ph 3 Ph 3 Ph 3 Ph 3 Ph 3 Ph Discharge 2 in 2 in 3 in 3 in 4 in 4 in 4 in Rated Flow 15 m³/h 18 m³/h 30 m³/h 36 m³/h 48 m³/h 60 m³/h 60 m³/h Max Flow 27 m³/h 33 m³/h 55 m³/h 75 m³/h 84 m³/h 84 m³/h 84 m³/h Rated Head 15 m 20 m 20 m 25 m 30 m 35 m 42 m Max Head 27 m 26 m 29 m 34 m 31 m 48.5 m 56 m Cable Length 8 m 8 m 8 m 8 m 8 m 20 m 20 m
