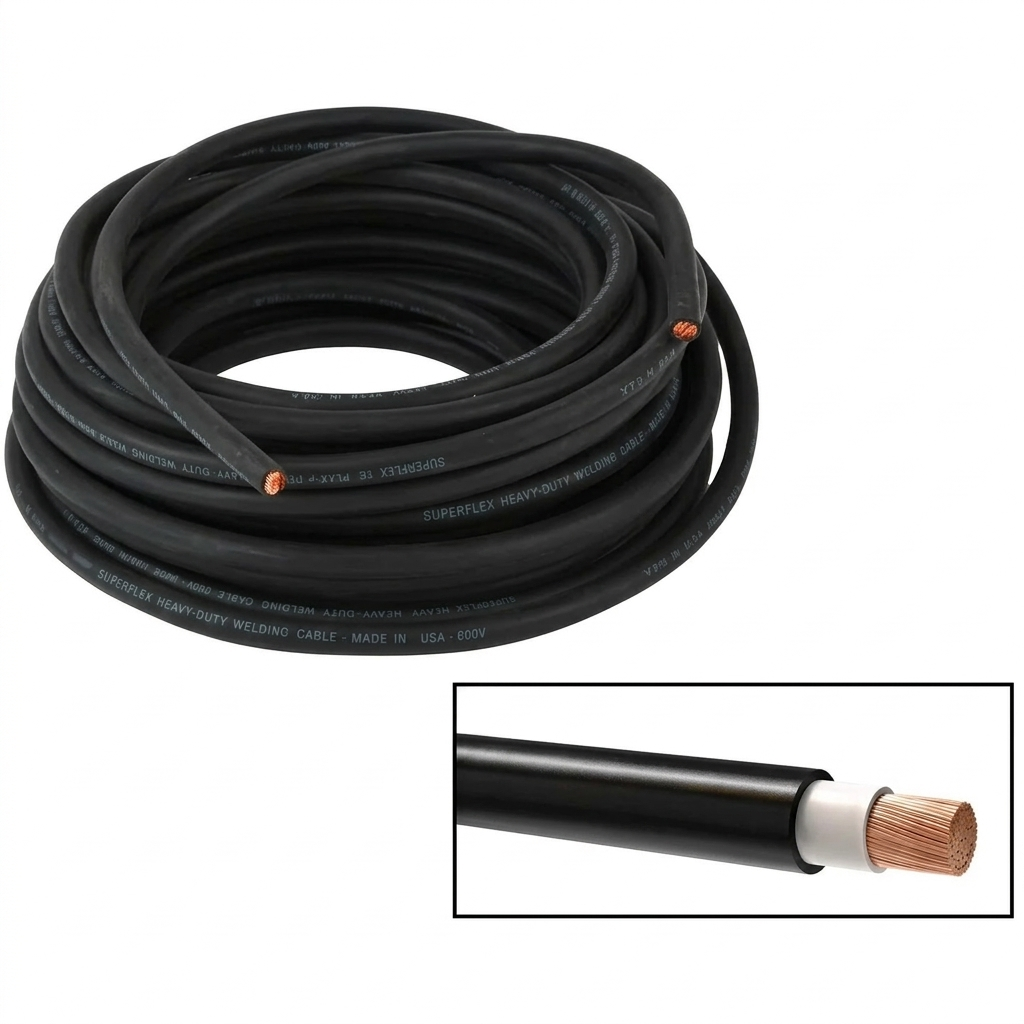

KOBEWEL WELDING CABLE, KWC-1395C
Model: KWC-1395C
Material: High-conductivity Copper
Insulator: Rubber
Cross-Section Area: 95 mm² (3/0 AWG)
Construction: 2268 strands of 0.193 mm diameter copper wire
Overall Diameter: 19.5 ± 0.3 mm
Maximum Conductor Resistance (-20°C): 0.257 Ω/km
Test Voltage: 2000V (no break)
Description:
The KOBEWEL KWC-1395C is a high-performance, heavy-duty welding cable designed for demanding industrial and commercial welding operations. Manufactured with premium-grade copper, this cable provides superior conductivity and flexibility, ensuring reliable power transmission for welding equipment.
The cable features a robust rubber insulation, offering excellent resistance to abrasion, oil, and the harsh conditions typically found in welding environments. With a large cross-sectional area of 95 mm², comprised of 2268 fine copper wires (each with 0.193 mm diameter), this cable achieves low electrical resistance (0.257 Ω/km at -20°C), minimizing power loss during operation.
Engineered for safety, the KWC-1395C undergoes stringent testing at 2000V, ensuring outstanding dielectric strength and break resistance. Its substantial overall diameter (19.5 mm) provides enhanced durability and ease of handling, making it suitable for use in roll lengths for large-scale projects.
Key Features:
- High purity copper conductor with multi-stranded design for maximum flexibility and conductivity
- Durable rubber insulation for superior resistance to heat, oils, abrasions, and mechanical stress
- Large sectional area (95 mm²) to support high current loads
- Stringent voltage test at 2000V for enhanced safety and reliability
- Designed for heavy-duty professional welding applications
Other Kobewel Welding Cable Models
KWC-D35C / KWC-D35CM
- Cross-Section Area: 35 mm² (#1 AWG)
- Material: Copper
- Insulator: Double-layer PVC
- Insulator Color: Black & White
- Available Lengths: 100 meters per roll (KWC-D35C), or custom per meter (KWC-D35CM)
KWC-D50C / KWC-D50CM
- Cross-Section Area: 50 mm² (1/0 AWG)
- Material: Copper
- Insulator: Double-layer PVC
- Insulator Color: Black & White
- Available Lengths: 100 meters per roll (KWC-D50C), or custom per meter (KWC-D50CM)
KWC-D70C / KWC-D70CM
- Cross-Section Area: 70 mm² (2/0 AWG)
- Material: Copper
- Insulator: Double-layer PVC
- Insulator Color: Black & White
- Available Lengths: 100 meters per roll (KWC-D70C), or custom per meter (KWC-D70CM)
Choose KOBEWEL welding cables for exceptional reliability, safety, and performance in all your welding applications.
