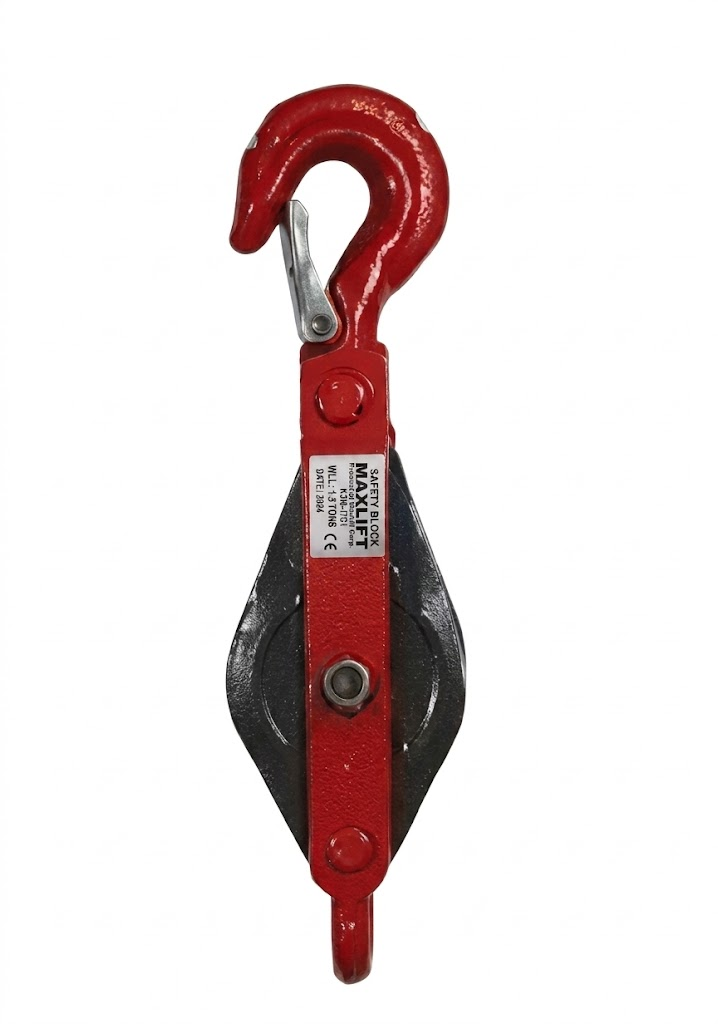

MAXLIFT PULLEY BLOCK (SNATCH BLOCK), LPB2-D Series
The MAXLIFT Pulley Block (Snatch Block), LPB2-D Series, is expertly engineered to deliver exceptional performance and durability in lifting and rigging operations. Designed to accommodate a wide range of tasks, this product line is ideal for demanding industrial, construction, and marine environments requiring reliable load handling solutions.

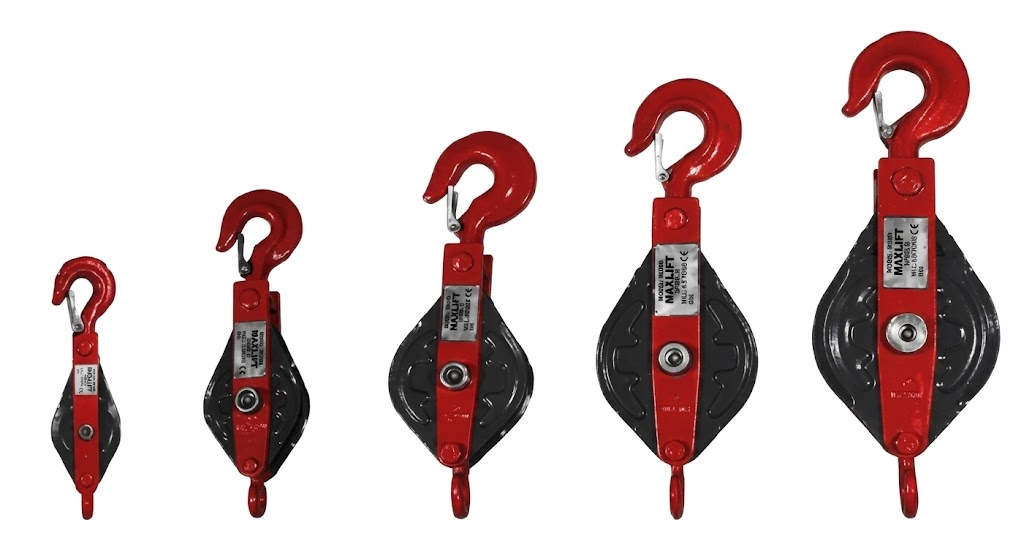

Available Models and Specifications:
LPB2-D
- Safe Working Load (S.W.L): 0.25 tons
- Sheave Size: Ø 2”
- Wire Rope Size: Ø 6 mm
- Overall Size (mm): 225 x 60 x 65
- Hook Opening: 15 mm
- Weight: 1.20 kg
LPB3-D
- Safe Working Load (S.W.L): 0.50 tons
- Sheave Size: Ø 3”
- Wire Rope Size: Ø 8 mm
- Overall Size (mm): 286 x 87 x 77
- Hook Opening: 17.50 mm
- Weight: 2.80 kg
LPB4-D
- Safe Working Load (S.W.L): 1 ton
- Sheave Size: Ø 4”
- Wire Rope Size: Ø 10 mm
- Overall Size (mm): 311.5 x 112 x 88
- Hook Opening: 23 mm
- Weight: 4.30 kg
LPB5-D
- Safe Working Load (S.W.L): 1.5 tons
- Sheave Size: Ø 5”
- Wire Rope Size: Ø 13 mm
- Overall Size (mm): 410 x 140 x 100
- Hook Opening: 25 mm
- Weight: 7.80 kg
LPB6-D
- Safe Working Load (S.W.L): 2 tons
- Sheave Size: Ø 6”
- Wire Rope Size: Ø 16 mm
- Overall Size (mm): 442.5 x 168 x 146
- Hook Opening: 30 mm
- Weight: 12.20 kg
Key Features:
- Robust Construction: Built with premium-grade materials to withstand heavy-duty applications and ensure long service life.
- Enhanced Safety: Each model offers precise Safe Working Load ratings for secure and confident lifting operations.
- Versatile Sheave Sizes: Available in multiple diameters to suit various wire rope specifications and application requirements.
- Easy Handling: Designed for user convenience with optimized overall dimensions and practical hook openings for swift attachment and release.
- Wide Applicability: Perfect for use in material handling, rigging, forestry, marine industries, and more.
Choose the MAXLIFT Pulley Block (Snatch Block) – LPB2-D Series for a dependable, high-performance lifting solution tailored to your specific operational demands.
