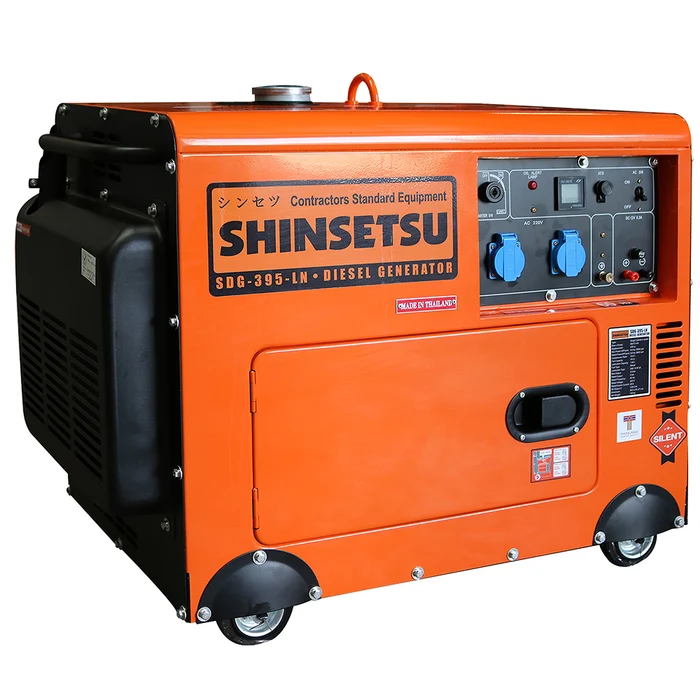

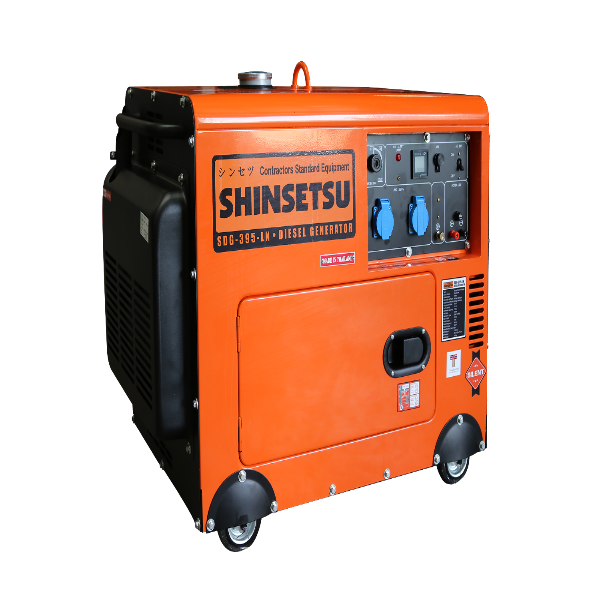

Shinsetsu Diesel Generator, SDG-395-LN

Product Description: Shinsetsu Diesel Generator, SDG-395-LN

The Shinsetsu Diesel Generator, SDG-395-LN represents the pinnacle of robust performance and reliable power supply, engineered to meet the demanding needs of both industrial and commercial environments. Designed for durability and efficiency, this generator is equipped with advanced features to ensure consistent power, low maintenance, and dependable operation.

Key Specifications:

• Rated Output: 5 kW
• Maximum Output: 5.5 kW
• Displacement: 418 cc
• Rated Power: 8.6 HP @ 3,600 rpm
• Maximum Power: 9 HP @ 3,600 rpm
• Bore x Stroke: 86 x 72 mm
• Compression Ratio: 19.5:1
• Rated Voltage: 230 V
• Frequency: 60 Hz
• Rated Electric Current: 26 A
• DC Output: 12 V (8.3 A)
• Fuel Tank Capacity: 14.5 L
• Lubrication Type: SAE 10W-30 | Lubrication Capacity: 1.65 L
• Engine Type: Single Cylinder, 4-Stroke
• Noise Level: 80 dB at 7 meters
• Weight: 149 kg
• Dimensions: 56.5 x 95 x 71 cm

Product Features:

• Efficient Performance: With a robust 418 cc displacement and high compression ratio of 19.5:1, this generator delivers superior fuel efficiency and consistently high power output.
• Low Noise Operation: Engineered for quieter operation, the SDG-395-LN emits only 80 dB at a 7-meter distance — ideal for urban, residential, and sensitive work environments.
• Reliable Power Delivery: The 5 kW rated output (maximum 5.5 kW) and 26 A rated electric current provide enough capacity to handle a wide range of electrical applications with ease.
• Durable Construction: Built with a sturdy single-cylinder, 4-stroke diesel engine, and high-quality components, ensuring long service life and reduced maintenance costs.
• Generous Fuel and Lubrication Capacity: A large 14.5 L fuel tank and 1.65 L lubrication capacity support extended run times and optimal engine performance.
• User-Friendly Design: Compact dimensions (56.5 x 95 x 71 cm) and manageable weight (149 kg) allow for flexible installation and transport.

Ideal Applications:
The Shinsetsu SDG-395-LN is perfectly suited for construction sites, emergency backup, remote power generation, commercial operations, and any situation demanding a dependable source of electricity.

Choose the Shinsetsu Diesel Generator, SDG-395-LN for assured performance, exceptional reliability, and professional-grade power output.
