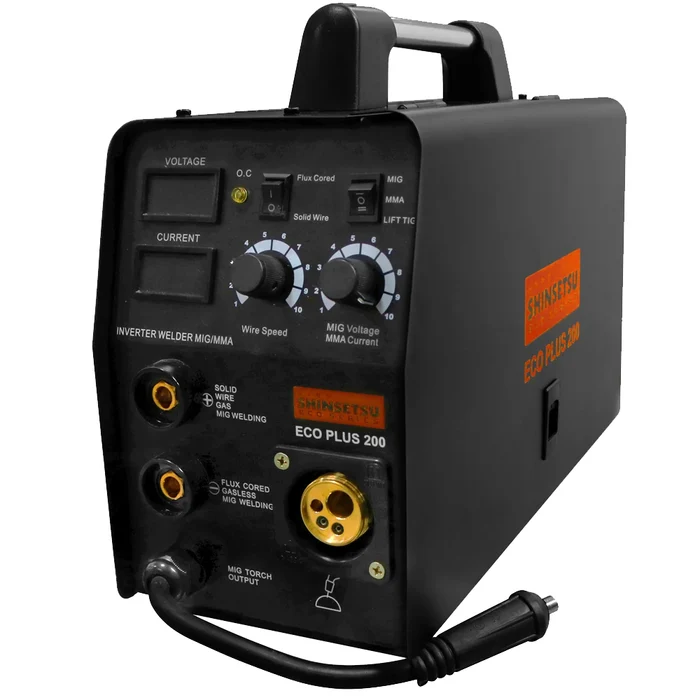

Shinsetsu Multi-purpose Welder Inverter, ECOPLUS-200
Experience precision, versatility, and efficiency with the Shinsetsu Multi-purpose Welder Inverter, ECOPLUS-200, expertly engineered for professionals and advanced hobbyists alike. Designed to deliver reliable and powerful welding performance, this inverter welder is the ideal solution for your MIG, MMA, and TIG applications.
Key Specifications
- Power Supply: 220 V
- Frequency: 60 Hz
- Phase: Single Phase (1 Ph)
- Rated Input: 7.4 kVA
- Open Circuit Voltage: 50 V
- Amperage Range: 30 – 200 A
- Rated Duty Cycle: 30%
- Rated Working Voltage: 15.5 – 24 V
- Wire Feed Speed: 0.5 – 15 m/min
- Compatible Wire Size: MS / SS / AL (0.6 – 1.0 mm)
- Spool Size: 5 kg (D200 Spool)
- Dimensions: 39 x 18 x 28 cm
- Weight: 11 kg
Standard Accessories
- MIG Torch (Euro-style, 2 m)
- Ground Clamp with 2 m Cable Wire
- Air Hose with 2 Clamps
Optional Accessories
- SE-200A Electrode Holder (For MMA Function) – ₱399.00
- KL-29021 Nozzle (For MIG) – ₱210.00
- KL-25009 TIG Torch (For TIG Function) – ₱4,900.00
- KL-29026 MIG Torch (For MIG Function) – ₱4,000.00
Product Overview
The Shinsetsu ECOPLUS-200 sets a new standard in welding versatility and reliability. Its powerful 7.4 kVA input and flexible 30–200A amperage range enable you to tackle everything from thin-sheet work to heavy-duty fabrication with consistent results. With a rated duty cycle of 30%, this welder is optimized for sustained productivity in demanding environments.
Engineered for compatibility with mild steel, stainless steel, and aluminum wires (0.6–1.0 mm), the ECOPLUS-200 accommodates the full spectrum of welding tasks. Its variable wire feed speed (0.5–15 m/min) and working voltage (15.5–24 V) allow for precise adjustments, ensuring optimal arc stability and weld quality.
Compact and lightweight at just 11 kg, with a robust 39 x 18 x 28 cm enclosure, the ECOPLUS-200 is designed for portability without sacrificing performance. Whether you are working in the shop or onsite, its user-friendly interface and Euro-style MIG torch deliver smooth and efficient operation.
Why Choose the Shinsetsu ECOPLUS-200?
- Multi-process Capability: Easily switch between MIG, MMA, and TIG functions using compatible optional accessories.
- Professional Grade Performance: High open circuit voltage and wide amperage range provide excellent welding characteristics across various materials and thicknesses.
- Durable & Portable: Rugged construction with lightweight design ensures long-term durability and easy transport.
- Fully Equipped: Ready to weld right out of the box with essential accessories included. Expand functionality through cost-effective optional add-ons.
Elevate your welding projects with the Shinsetsu Multi-purpose Welder Inverter, ECOPLUS-200—where power, precision, and versatility meet.
