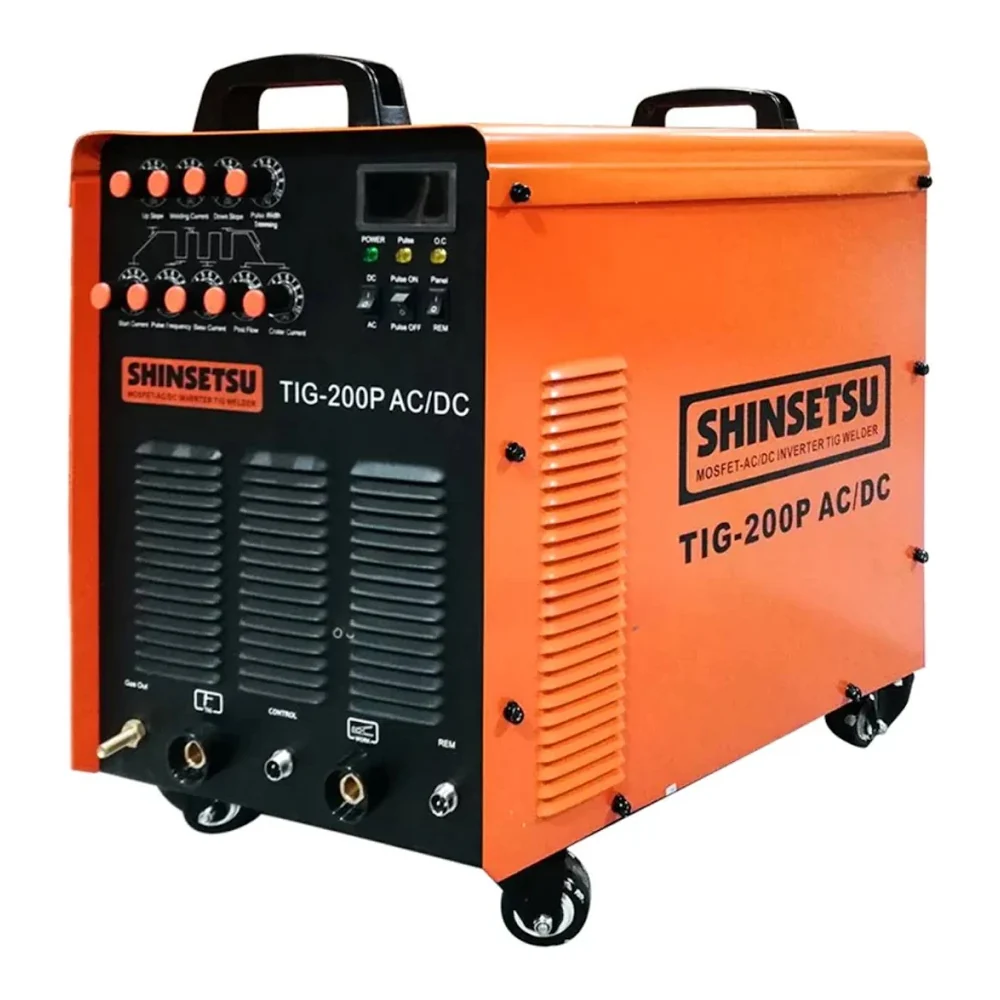

Product Description: Shinsetsu TIG Welder Inverter TIG-200P AC/DC
The Shinsetsu TIG-200P AC/DC is a high-performance TIG welder inverter, expertly engineered for precision welding across a variety of applications. Designed for both amateur and professional welders, this advanced machine delivers reliability and exceptional control, making it an excellent choice for demanding environments.
Key Features and Specifications:
- Input Power: 220 V ± 15%
- Output No-Load Voltage: 56 V
- Frequency: 60 Hz
- Efficiency: 85%
- Phase: Single Phase (1 Ph)
- Power Factor: 0.76
- Rated Input Power (TIG): 5.6 kVA/6.5 kVA
- Protection Class: IP 23
- Rated Duty Cycle: 60%
- Initiation Mode: HF (High Frequency)
- Output Amperage Range (TIG): 10-200 A / 20-160 A
- Current Adjustment Range (TIG): 10-200 A / 20-160 A
- Dimensions: 765 x 455 x 630 mm
- Net Weight: 32.5 kg
- Gross Weight: 34 kg
Welding Parameters:
- Pulse Frequency: 0.5 - 300 Hz
- Up Slope Time: 0 - 5 seconds
- Down Slope Time: 0 - 5 seconds
- Post Flow Time: 1 - 10 seconds
- Pulse Base Current: 20 - 90 %
Standard and Additional Accessories:
- 1 pc TIG Torch – for precision control and ease of operation
- 1 pc Collet Body, 3 pcs Collet – ensures tight grip and reliable electrode connection
- 1 pc Short Cap, 1 pc Long Cap – for flexible torch configuration
- 3 pcs Alumina Cap – high-quality shielding for optimal welds
- 3 m Welding Cable with Ground Clamp – robust connectivity and safety
- 1 pc KGW-B1 (Additional Accessory) – enhances welding versatility
Expert Evaluation:
The Shinsetsu TIG-200P AC/DC combines user-friendly features with professional-level performance. Its robust 60% duty cycle supports longer welding periods, while high efficiency (85%) optimizes power consumption. The precise control over pulse frequency, slope times, and base current allows for tailored welding, critical in materials such as aluminum and stainless steel. Engineered to IP 23 protection standards, this welder is durable and ready for tough worksite conditions.
Whether for intricate fabrication, automotive repair, or industrial maintenance, the Shinsetsu TIG-200P AC/DC delivers superior arc stability and consistent weld quality—establishing itself as an essential tool for any discerning welder.
Choose Shinsetsu TIG-200P AC/DC for powerful, reliable, and precise TIG welding expertise.
